Hybrid inverters WKS Evo Circle 11.2kVA 48V + 2 communication kits

WKS

WKS EVO Circle hybrid inverters are the ideal solution to supply a home for self-consumption or make an isolated site autonomous.

The communication kits make it possible to connect the WKS EVO Circle in parallel.

We can configure the inverters in the workshop by selecting the settings in the options column.

For the availability of the WKS EVO Circle 5.6Kva 48V, please refer to the available stock by clicking here.

More details

More info

 The pack contains:



  • 2 hybrid inverters WKS EVO 5 kVA - 48V
  • 2 communication kits: parallelization

The pack allows you to connect 2 WKS EVO in parallel.

Composition



Onduleur WKS EVO CIRCLE2x Hybrid inverter WKS Evo Circle 5.6 kVA 48V



The WKS EVO Circle is equipped with an MPPT solar charge controller that maximizes and regulates the DC power of the solar panel to charge your battery park.
Transformerless design enables reliable power conversion in a compact form factor. The new generation of WKS has a built-in Wi-Fi function, mobile monitoring can be done through mobile apps. The data can be viewed and saved in the inverter, which is convenient for tracking the operating status of the inverter. It also supports USB On-The Go feature for easy rewriting of internal settings, data downloads, and software updates.



• Pure Sine Wave MPPT Solar Inverter
• Customizable status LED ring with RGB lights
• Touch button with 4.3" color LCD screen
• Wide DC input range
• Log events of data stored in the UPS
• Built-in Wi-Fi for mobile monitoring (app available)
• Reserved communication port for BMS
• Parallel operation with up to 9 units
• Possibility of choosing the mode of operation via timer
• Output of 27 Amperes







Characteristics



Model
Rated power5600VA/5600W
Entrance
AC input voltage170-280 VAC (for personal computers)
Selectable voltage range90-280 VAC (for household appliances)
Frequency range50Hz/60Hz (automatic detection)
Exit
AC voltage regulation (Batt. mode)230 VAC +/- 5
Overload capacity5s@>/=150% charge;10s@110%~150% charge; 100ms @ >/=200% charge
Yield (peak)93%
Transfer time10 ms (for personal computers); 20 ms (for household appliances)
WaveformPure sine wave
AC output voltage24.3A
Battery
Battery voltage48 VDC
Floating charging voltage54 VDC
Overload protection66 VDC
Solar charger and AC charger
Type of solar chargerMPPT
Maximum power of the PV generator6000W
MPPT range at operating voltage120~430VDC
Maximum voltage of the open circuit of the PV450VDC
Maximum solar charging current120A
Maximum AC charging current120A
Physics
Dimension, D x W x H (mm)140x295x468
Net weight (kgs)11.0 12.0
Communication interfaceUSB/RS232/RS485/Wifi/Dry Contact
Usage environment
Humidity5% to 95%a Relative humidity (non-condensing)
Operating temperatureFrom -10°C to 50°C
Storage temperatureFrom -15°C to 60°C



Kit de communication pour onduleurs WKS 4 et 5 kVA

2x Communication Kit - Parallelization



The WKS EVO 5KVA can be connected in parallel thanks to this communication kit, and this in different ways:

Up to 20 KVA in single phase

Several devices (max4) can be connected in series, allowing to make systems with up to 20 KVA in output power.

The kit includes the board, a power cable for it and a communication cable.

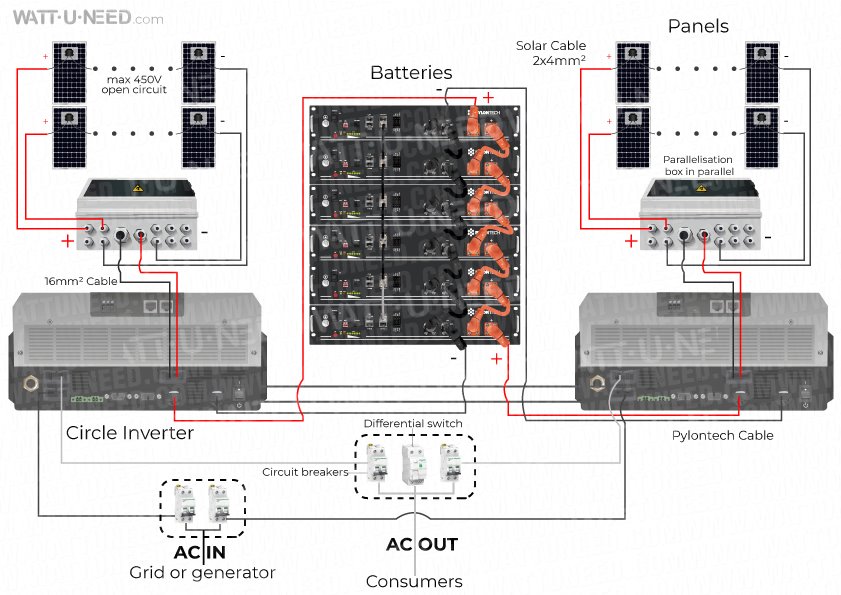

Paralleling scheme

Paralleling scheme


Software

WatchPower 1.16SP3





WatchPower 1.16SP4



Product Reviews
  • Number of Reviews : 1
  • Average Grade : 5 /5
  • V. Eugy
  •  the 08/06/2022
  • 5/5
This WKS Evo Circle duo works as a Swiss clockwork. Basic setup is easy, the color ring setup is pretty confussing.

Specifications

Voltage48V
Power10000 VA
Monophasé / TriphaséMonophasé
Inverter power10000VA
